Craftsman Engineering

11 X 17 Title Block Set

11 X 17 Title Block Set

Regular price $350.00 USD
Regular price Sale price $350.00 USD
Sale Sold out

This is a set of 15 Cabinet Vision title blocks formatted for landscape on 11 X 17 paper ( Tabloid ).  Each title block is ready to use after replacing the default placeholder logo your custom company logo.

These title blocks help streamline your submittal drawings workflow and provide a professional and consistent presentation for all your shop drawing submittal packages.

Included in the set are:

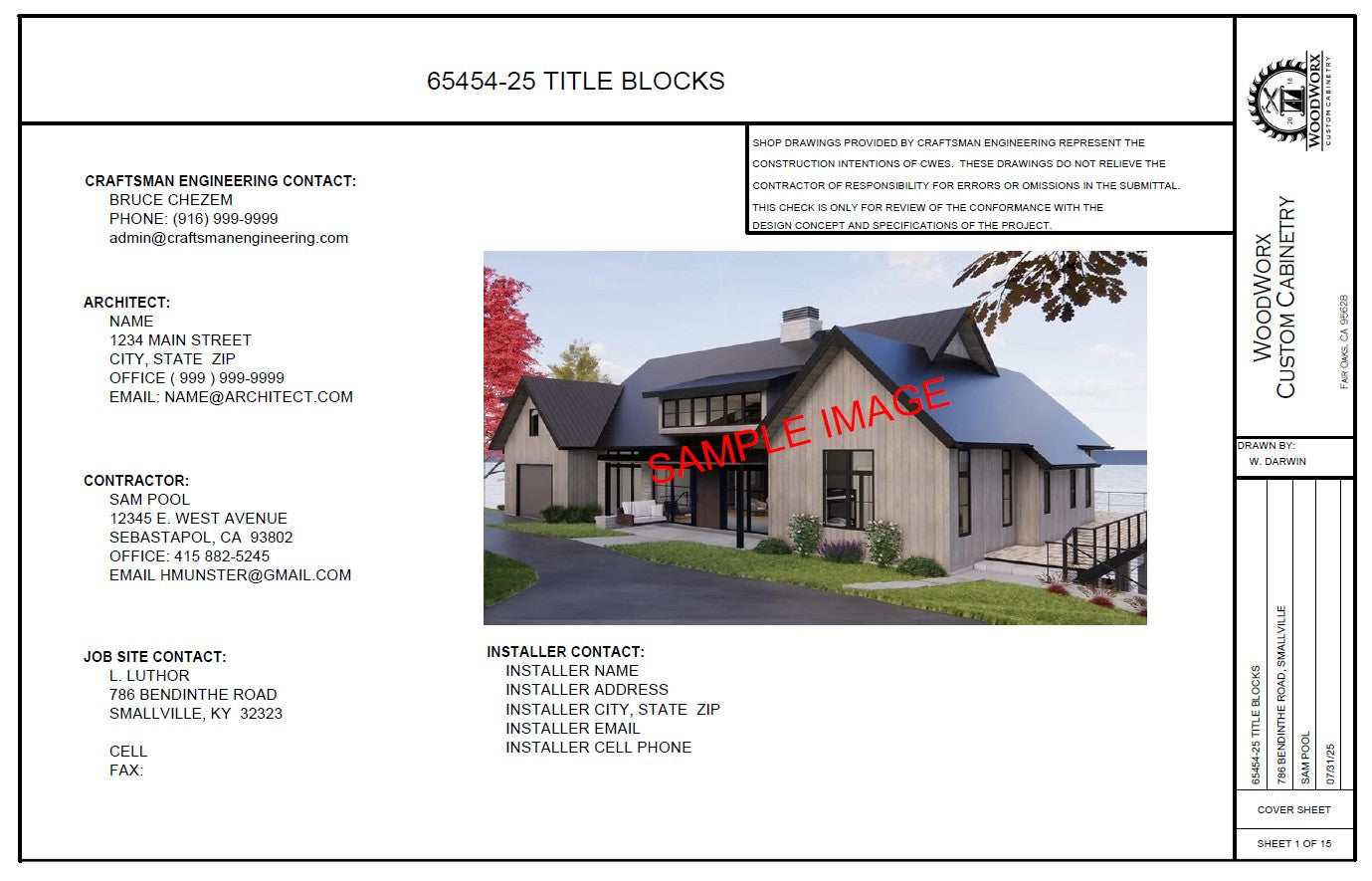

  • Cover page or "First Sheet"

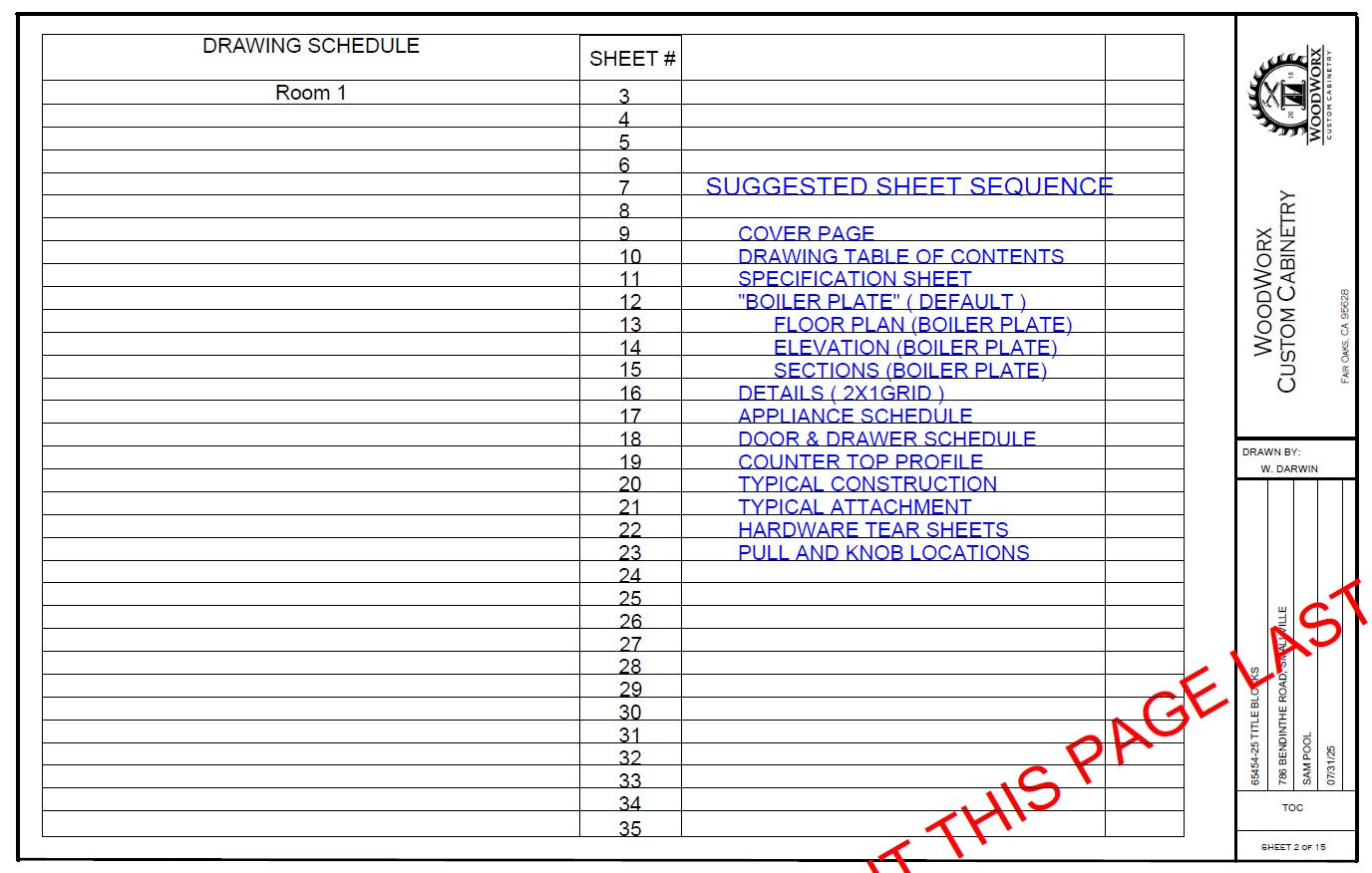

  • Drawing Schedule or Table of Contents

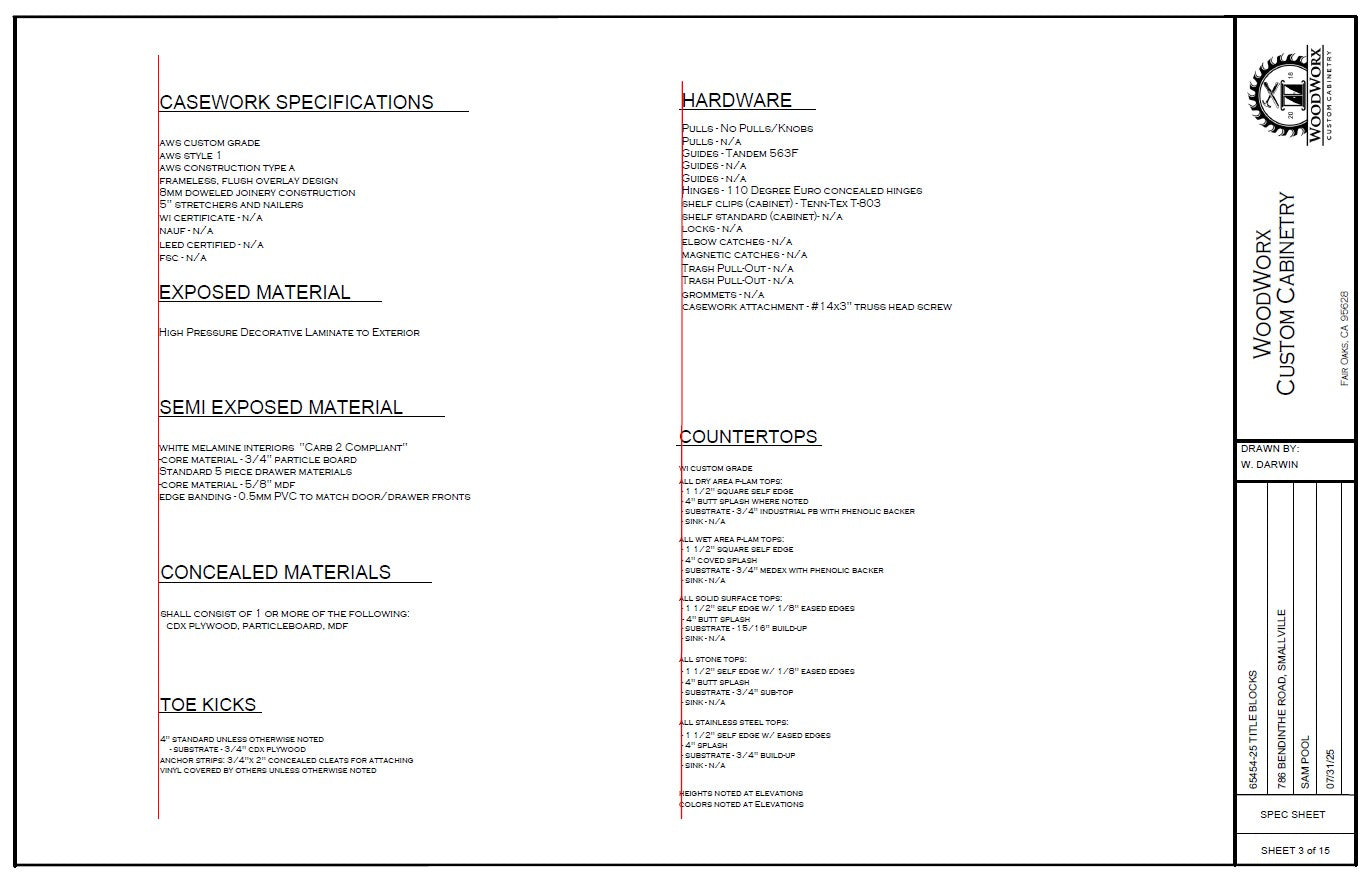

  • Specification Sheet

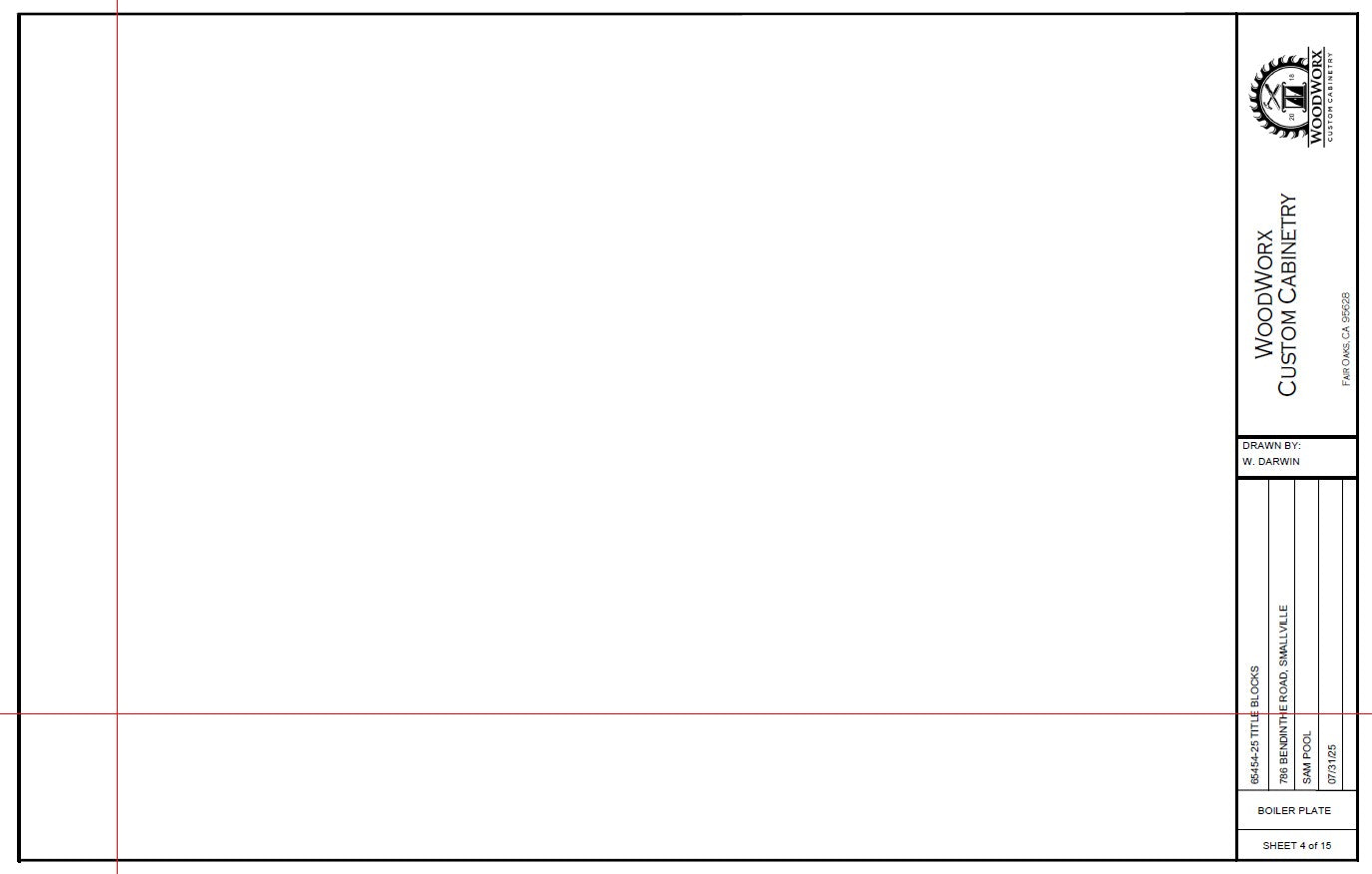

  • "Boiler Plate" - Best for "Default Title Block"
  • 2 X 1 Blank Grid

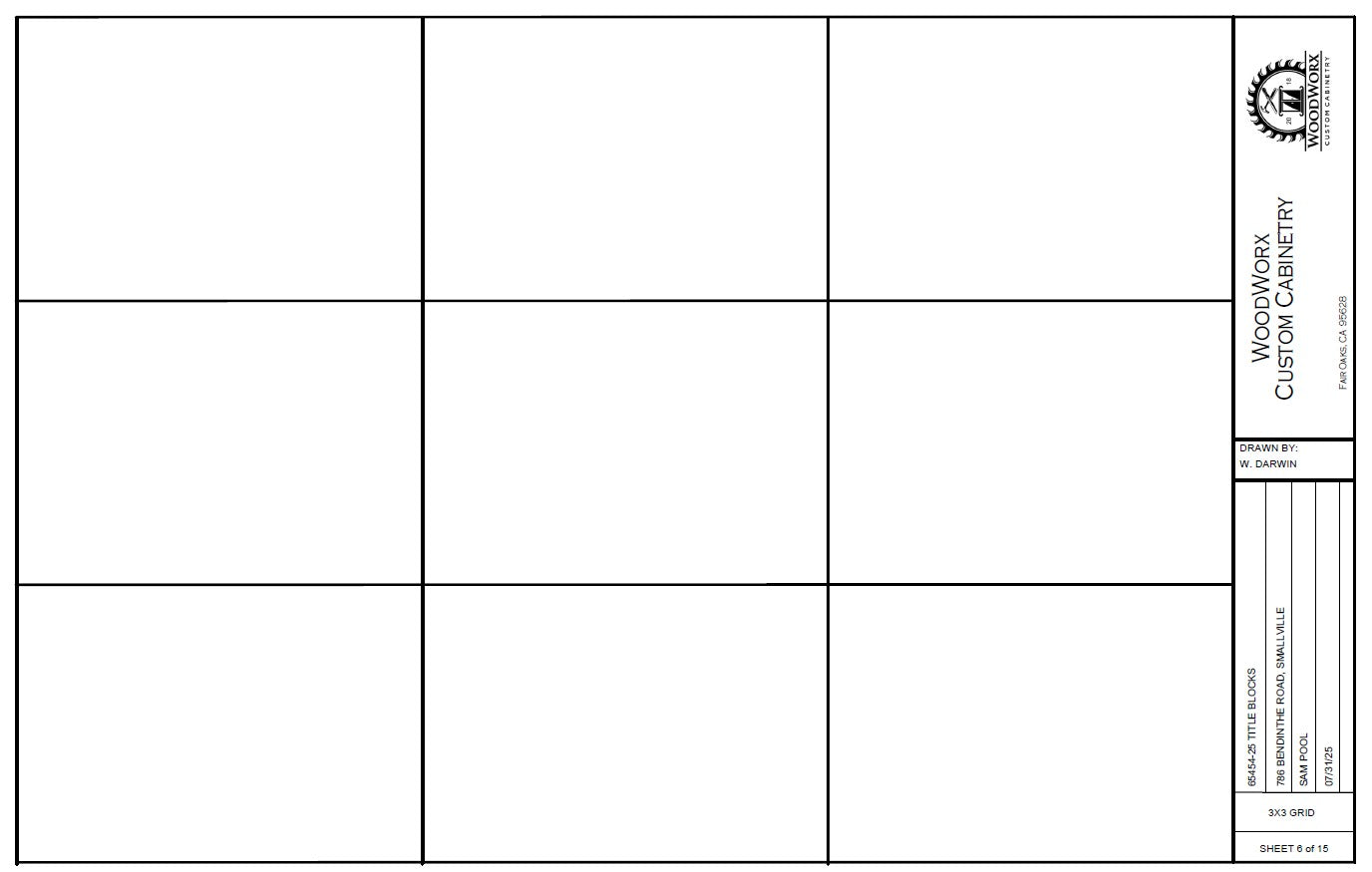

  • 3 X 3 Blank Grid
  • Appliance Schedule
  • Door & Drawer Schedule
  • Material Schedule
  • Solid Surface Counter Top Profiles
  • Plastic Laminate Counter Top Profiles
  • Typical Construction
  • Typical Attachments
  • Hardware "Tear" Sheets
  • Wire Pull Locations
